Kubernetes training
Welcome to this github page built to document training examples for kubernetes.
frontend-backend-example-1
This is a very simple resource configuration that deploys a frontend and backend services running in the cluster. Frontend uses service type NodePort and ClusterIP for the backend. We are deploying into namespace app. You may choose another existing one or if you prefer, just remove namespace definition from metadata to deploy into default namespace.
Deploy backend
kubectl create -f backend.yaml
backend.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: apps
name: backend
labels:
app: backend-app
spec:
replicas: 4
selector:
matchLabels:
app: backend-app
template:
metadata:
labels:
app: backend-app
spec:
containers:
- name: nginx
image: nginx:1.14.2
ports:
- containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
namespace: apps
name: backend
spec:
selector:
app: backend-app
ports:
- protocol: TCP
port: 80
targetPort: 80
Deploy Frontend
kubectl create -f frontend.yaml
frontend.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: apps
name: frontend
labels:
app: frontend-app
spec:
replicas: 2
selector:
matchLabels:
app: frontend-app
template:
metadata:
labels:
app: frontend-app
spec:
containers:
- name: frontend
image: nginx:1.14.2
volumeMounts:
- mountPath: /etc/nginx # mount nginx-conf volumn to /etc/nginx
readOnly: true
name: nginx-conf
volumes:
- name: nginx-conf
configMap:
name: frontend-nginx-conf # place ConfigMap `nginx-conf` on /etc/nginx
items:
- key: nginx.conf
path: nginx.conf
- key: virtualhost.conf
path: conf.d/virtualhost.conf # dig directory
---
apiVersion: v1
kind: Service
metadata:
namespace: apps
name: frontend
spec:
type: NodePort
selector:
app: frontend-app
ports:
- protocol: TCP
port: 8080
targetPort: 80
---
apiVersion: v1
kind: ConfigMap
metadata:
namespace: apps
name: frontend-nginx-conf
data:
nginx.conf: |
user nginx;
worker_processes 1;
error_log /var/log/nginx/error.log warn;
pid /var/run/nginx.pid;
events {
worker_connections 1024;
}
http {
#include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
sendfile on;
keepalive_timeout 65;
include /etc/nginx/conf.d/virtualhost.conf;
}
virtualhost.conf: |
upstream app {
server backend:80;
keepalive 1024;
}
server {
listen 80 default_server;
root /usr/local/app;
access_log /var/log/nginx/app.access_log main;
error_log /var/log/nginx/app.error_log;
location / {
proxy_pass http://backend;
proxy_http_version 1.1;
}
}
How this works
The frontend service by using NodePort is exposing a physical port in the kubernetes worker nodes. If not specified this will be a random port between 30000 and 32767.
Basically, we have nginx running on both deployments, but we are only exposing first service while the second one for backend is only accesible within the cluster. The configMap
injects the nginx configuration using volumes into the frontend, and this one is acting as proxy redirecting the traffic internally to the backend service.
frontend-backend-example-2
For this example more elavorated we are deploying for frontend a wordpress image from bitnami, and as a backend, the mariadb database. The database service is using a ClusterIP service type. This is because will be only serviced for wordpress, hence this eliminates a security breach exposing the database outside. On the other hand, wordpress service is using NodePort to publish outside the port listening to the application. We have chosen port 31080
Deploy backend (MariaDB)
---
apiVersion: apps/v1
kind: Deployment
metadata:
generation: 1
labels:
run: mariadb
name: mariadb
spec:
replicas: 1
selector:
matchLabels:
run: mariadb
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 1
type: RollingUpdate
template:
metadata:
labels:
run: mariadb
spec:
containers:
- image: bitnami/mariadb:latest
imagePullPolicy: Always
name: mariadb
ports:
- containerPort: 3306
protocol: TCP
env:
- name: MARIADB_ROOT_PASSWORD
value: bitnami123
- name: MARIADB_DATABASE
value: wordpress
- name: MARIADB_USER
value: bitnami
- name: MARIADB_PASSWORD
value: bitnami123
volumeMounts:
- name: mariadb-data
mountPath: /bitnami/mariadb
volumes:
- name: mariadb-data
emptyDir: {}
dnsPolicy: ClusterFirst
restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
name: mariadb
labels:
run: mariadb
spec:
ports:
- protocol: TCP
port: 3306
targetPort: 3306
selector:
run: mariadb
Deploy Frontend (Wordpress)
---
apiVersion: apps/v1
kind: Deployment
metadata:
generation: 1
labels:
run: blog
name: wordpress
spec:
replicas: 1
selector:
matchLabels:
run: blog
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 1
type: RollingUpdate
template:
metadata:
labels:
run: blog
spec:
containers:
- image: bitnami/wordpress:latest
imagePullPolicy: Always
name: wordpress
ports:
- containerPort: 80
protocol: TCP
- containerPort: 443
protocol: TCP
env:
- name: MARIADB_HOST
value: mariadb
- name: MARIADB_PORT
value: '3306'
- name: WORDPRESS_DATABASE_NAME
value: wordpress
- name: WORDPRESS_DATABASE_USER
value: bitnami
- name: WORDPRESS_DATABASE_PASSWORD
value: bitnami123
- name: WORDPRESS_USERNAME
value: admin
- name: WORDPRESS_PASSWORD
value: password
volumeMounts:
- name: wordpress-data
mountPath: /bitnami/wordpress
- name: apache-data
mountPath: /bitnami/apache
- name: php-data
mountPath: /bitnami/php
volumes:
- name: wordpress-data
emptyDir: {}
- name: apache-data
emptyDir: {}
- name: php-data
emptyDir: {}
dnsPolicy: ClusterFirst
restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
name: wordpress
labels:
run: blog
spec:
ports:
- protocol: TCP
port: 80
targetPort: 80
nodePort: 31080
selector:
run: blog
type: NodePort
How this works
The frontend service by using NodePort is exposing a physical port in the kubernetes worker nodes, same as example 1. If not specified this will be a random port between 30000 and 32767. We have manually chosen a fixed one. If we had a cloud-provider cluster with kubernetes service compatibility we would have gone for instance for the LoadBalancer service type, then cloud provider automatically provides a free IP resource for the service exposing outside of the cluster the service.
wordpress-complete-example
This may be considered an extension on the previous example ‘2’ . In here we are deploying the blog and database to be ready for a fresh configuration, but with the main concept of using and ingress controller. This way we are exposing the blog service outside of the cluster with an ingress resource.
For our example, we publish localhost and a dns wordpress.foo.bar.com with same result. Notice in here we are not using NodePort, but the nginx-controller is using 2 services, ClusterIP and LoadBalancer to handle the ingress requests. There are quite a few ingress controllers though you can find over internet, we will be using nginx-ingress.
Create a host record
For the example of the dns wordpress.foo.bar.com, we will be required to create a host entry locally to point to the IP address of the machine:
- Linux:
/etc/hosts - Windows:
C:/System32/drivers/etc/hosts - Mac:
/private/etc/hosts
# DNS record to point to our cluster
{local_ip_address} wordpress.foo.bar.com
Create our custom Namespace
kubectl apply -f wordpress-complete-example/namespace.yaml
Deploy the nginx-ingress controller
We are using the default resources for the application which are deployed in an isolated namespace
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.43.0/deploy/static/provider/cloud/deploy.yaml
Deploy the backend database
kubectl apply -f wordpress-complete-example/app/backend-mariadb-deploy.yaml
Deploy the frontend blog
kubectl apply -f wordpress-complete-example/app/frontend-wordpress-deploy.yaml
Access to the blog

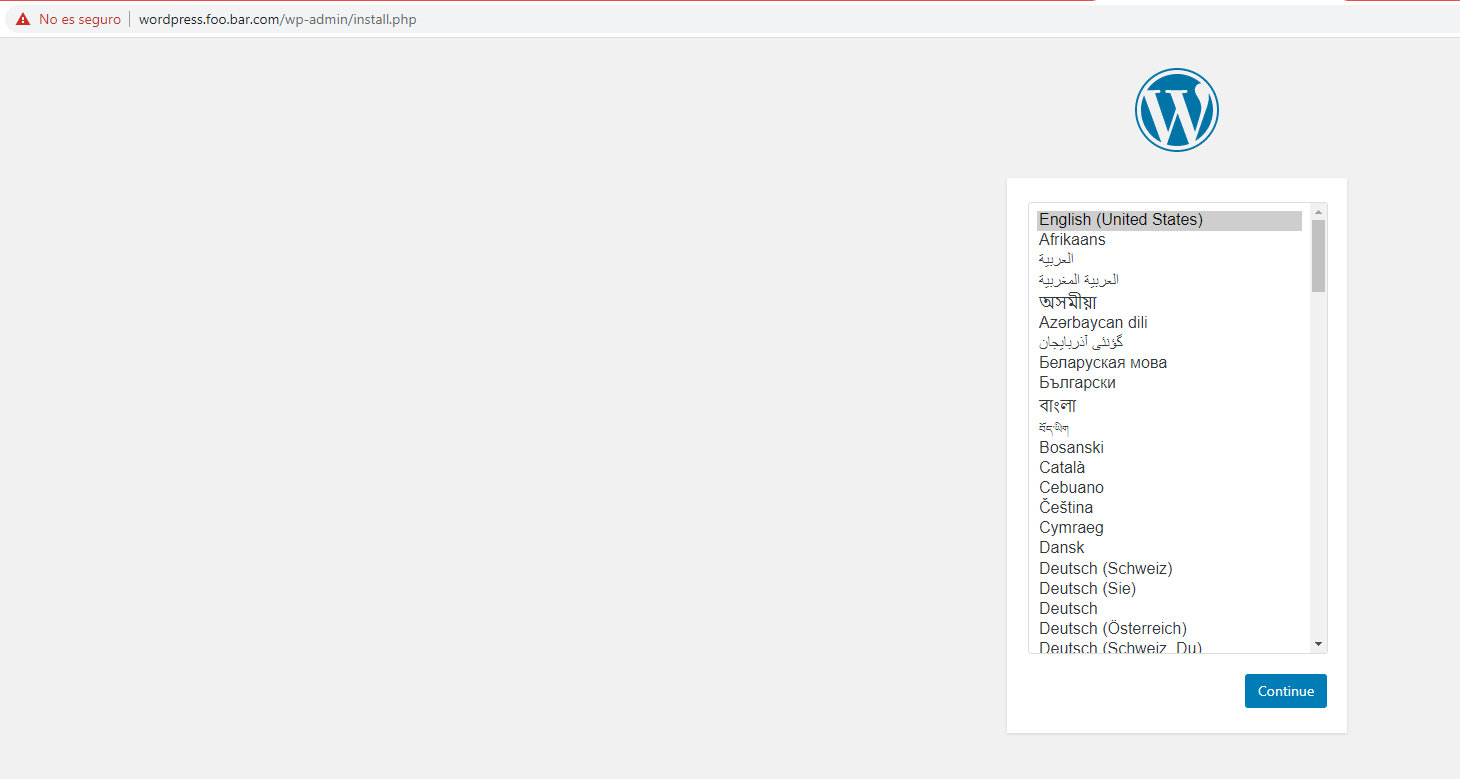

Now you can access to the blog by using one of the ingress hosts examples and set the blog up:
- example 1: http://localhost
- example 2: http://wordpress.foo.far.com
